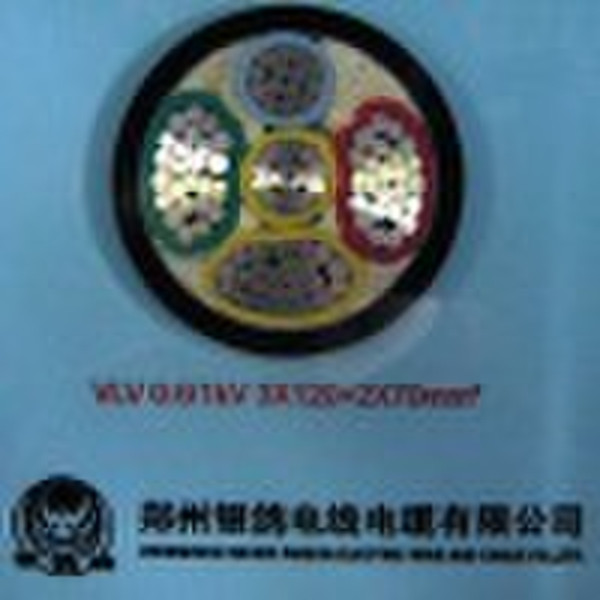

PVC Insulated Power Cable

Product DescriptionThe PVC insulated power cable and fire resistant power cable are suitable for fixed laying in power transmission and distribution lines with A. C. 50Hz and voltage rating of up to or including 6KV.1. Product Performance: (1). The long-time permissible operation temperture of conductor shall not be higher than 70º C. (2). Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160º C. (3). The cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0º C. (4). Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame. (5). Light weight, perfect bending properties, installed and maintained easily and conveniently.Voltage rating: 0.6/1kV3.6/6kV.Conductors: Copper or aluminum.Number of cable cores: One core(Single core), two cores(Double cores), three cores, four cores(Four Equal-section-area cores or three equal-section-area cores and one smaller section area neutral core), five cores(Five equal-area cores or three equal-section-area cores and two smaller section area neutral cores). We provide armoured trpe and non-armored type for the cables above.Our company has been carrying out Chinese national standard GB 12706 and GB 12666.6(equivalent to IEC 60502 and IEC 60331)for PVC insulated power cable and fire resistant cable needed by domestic customer, and for foreign customers we can manufacture in accordance with BS, DIN and other countries, standards. In addition, we can design and manufacture PVC insulated power cable with special characteristics according to needs of customers.2. Technical Requirements
