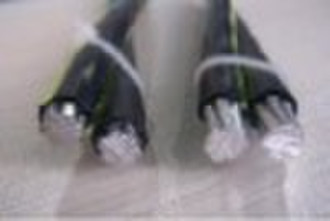

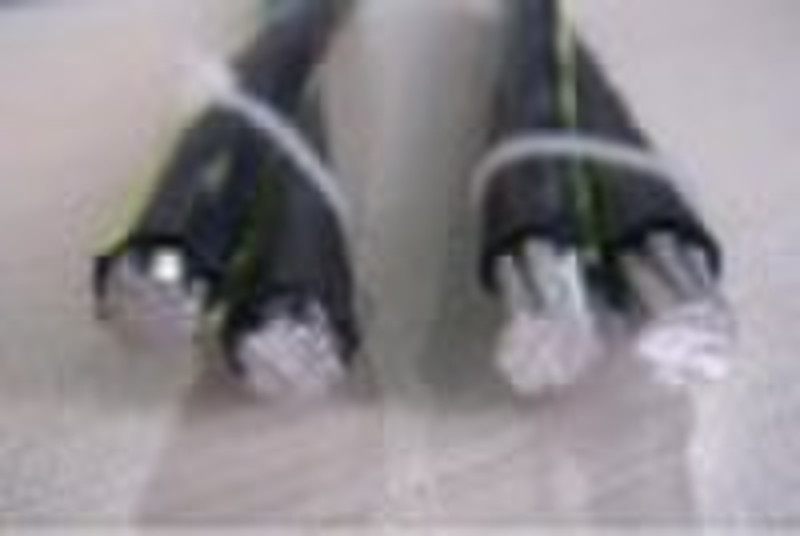

Aerial Bundled Cable(Duplex)

ABC cable Aerial Insulated Cables of Rated Voltage up to and including 1kV 1. Application The product is used in aerial electric circuit at AC rated voltage U(Um)=10(12)kV. 2. Applying terms 1) The long time working temperature of cable should not be higher than 90oC. 2) While installation the ambient temperature should not be lower than -20oC. 3) When core is in short circuit (max 5s) the temperature should not exceed 250oC. 3. Model and Name 10kV Steel Core Aluminium XLPE Insulated Aerial CableModel Section aluminium/ Steel mm2 Name Main Usage JKLGYJ-10 10/2-500/65 10 KV Steel core aluminium XLPE insulation aerial cable Itis applicable to fix and lay down 10KV overhead power line. To extendcables, it shall be taken into consideration to keep a certain distancebetween cable and tree. And it is permitted to have frequent contactsbetween cable and tree while the cable is in operation.
